V6 Series High Performance Servo Motor

V6 Series High Performance Servo Motor
Category
40 Series
Product Details

V6 series high performance servo motor has independent intellectual property rights, using high-performance rare earth permanent magnet materials, with small size, high power density, strong overload capacity, low cogging torque, low noise and exquisite appearance and other outstanding advantages.



Features: High performance, high overload, support a variety of encoders.



Technical Parameter



電压Voltage

220V



型号Model  MV6M-

R5A

01A



机座号 Size

40



额定输出Rated Output (KW)

0.05

0.1



额定转矩Rated Torque*1 (Nm)

0.16

0.32



最大转矩Maximum Torque (Nm)

0.48

1.12



额定電流Rated Current (A)

0.75

0.93



最大電流Maximum Current (A)

2.25

3.1



额定转速Rated Speed (rpm)

3000



最高转速Maximum Speed (rpm)

6000



力矩系数Torque Coefficient (Nm/A)

0.21

0.344



線反電势系数Linear Back-EMF Coefficient (V/Krpm)

15.0

22.9



20℃时線電阻

Line resistance at 20℃ (Ω)

33.8

18.9



20℃时線電感

Line inductance at 20℃ (mH)

26.9

17.1



转子极数Rotor Pole

10



转子转动惯量Rotor Moment of Inertia (10-4kg·m2)

0.0395
0.0475

0.067
0.072




最大径向拉力

Maximum Radial Tension (N)

78



最大轴向拉力

Maximum Shaft Tension (N)

54



保护结构Protective Structure*2

全封闭自冷Fully Enclosed & Self Cooling IP65



保持
制动器规格*3

Maintain Brake Specifications

额定電压Rated Voltage DC (V)

24±10%



功率Power (W)

6.1



静保持转矩Static Holding Torque (Nm)

0.32



20℃时電阻

Resistance at 20℃ (Ω)

94.4



20℃时额定電流Rated Current at 20℃ (A)

0.25±10%



吸引时间

Attraction Time (ms)

40



释放时间

Release Time (ms)

20



容许负载转动惯量

Allowable Load Moment of Inertia

30倍以下

Less than 30 times

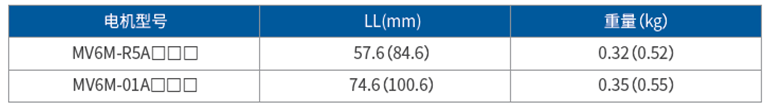

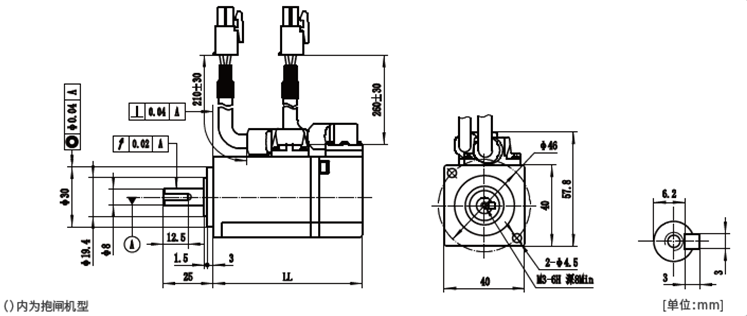

Overall Dimension



Torque-Speed Characteristic Curve

Note: A (instantaneous working area) B (continuous working area)
